Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 316 L | Materials Morphology: | Powder |
|---|---|---|---|
| CNC Machining Or Not: | Not | Micro Machining Or Not: | Not |
| Quotation Leadtime: | Within 24 Hours | Business Type: | Manufacturer&factory |
| Tolerance: | +/-0.05mm | Price: | Reasonable And Negotiate |
| Avaliable Files: | Step/stp/igs/x_t/stl | Material Capabilities: | Cobalt-chromium Alloy,stainless Steel 316,titanium |

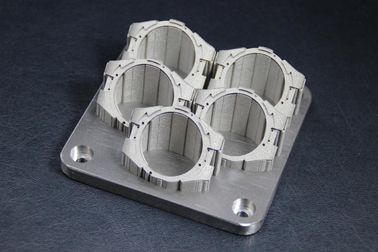

Sandblasting Color Anodized Stainless Steel CNC Machining for Auto Parts
Direct Metal Laser Sintering, Metal Selective Laser Sintering (SLS)
Direct metal laser sintering (DMLS) is an additive metal fabrication technology developed by EOS out of Munich, Germany, sometimes also referred to by the terms selective laser sintering (SLS) or selective laser melting (SLM). The process involves use of a 3D CAD model whereby a .stl file is created and sent to the machine’s software. A technician works with this 3D model to properly orient the geometry for part building and adds supports structure as appropriate. Once this "build file" has been completed, it is "sliced" into the layer thickness the machine will build in and downloaded to the DMLS machine allowing the build to begin.
|
Applications |
· Metal parts, fire test parts, fixture direct manufacturing and model demonstration test.
· Development of new products.
· Creative design and display of culture, creativity, clothing, household goods and other.
· Product design, rapid production of high-precision injection molds.
· Research and development of implants, teeth, skull repair, prosthetics and medical
equipment.
|
Advantages |
1. DMLS is also one of the few additive manufacturing technologies being used in
production. Since the components are built layer by layer, it is possible to design internal features and
passages that could not be cast or otherwise machined.
2. Compared with traditional manufacturing techniques, the speed of DMLS is the most
obvious because no special tooling is required and parts can be built in a matter of hours.
3. Complex geometries and assemblies with multiple components can be simplified to fewer parts with a
more cost effective assembly. DMLS does not require special tooling like castings, so it is convenient for
short production runs.
4. DMLS allows for more rigorous testing of prototypes. Since DMLS can use most alloys, prototypes can
now be functional hardware made out of the same material as production components.
|
Technical Specifications for Direct Metal Laser Sintering |
|
Technique Specifications of EOSINT M 280 |
Equipment |
|
|
Building volume |
250 mm x 250 mm x 325 mm (9.85 x 9.85 x 12.8 in) |
|
| building platform | 9.85 x 9.85 x 12.8 in | |
|
Laser type |
Yb-fibre laser, 200 W oder 400 W (optional) |
|
|
Precision optics |
F-theta-lens, high-speed scanner |
|
|
Scan speed |
up to 7.0 m/s (23 ft./sec) |
|
|
Variable focus diameter |
100 - 500 μm (0.004 - 0.02 in) |
|
|
Power supply |
32 A |
|
|
Power consumption |
maximum 8.5 kW / typical 3.2 kW |
|
|
Nitrogen generator |
integrated |
|
|
Compressed air supply |
7,000 hPa; 20 m3/h (102 psi; 706 ft3/h) |
|
|
Argon supply |
4,000 hPa; 100 l/min (58 psi; 3.5 ft3/min)(optional) |
|
Service Step for a Project
Inspection Equipment-Three coordinate measuring
For its high precision flexible three coordinate measuring technology and excellent digital capability, become
a modern manufacturing especially mold industrial design, development, manufacture and quality assurance.
YanHua company now in U.S. F
ARO company produces the Platinum FaroArm 2.4 m joint arm type measuring instrument, measurement
accuracy of + / - 0.03 mm.
Three coordinate measuring machine can be applied to 3 d digital analog input, will the molding samples or
related to the da location, size, shape tolerance, curve and curved surface are compared, and measuring the
output graphical reports, intuitive clearly reflect the quality of the products, thus forming a complete sample
test report.
