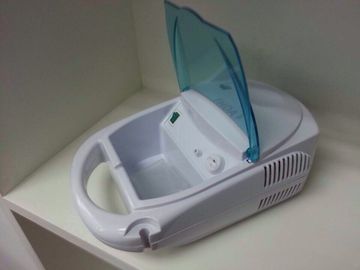

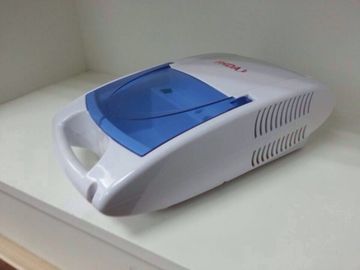

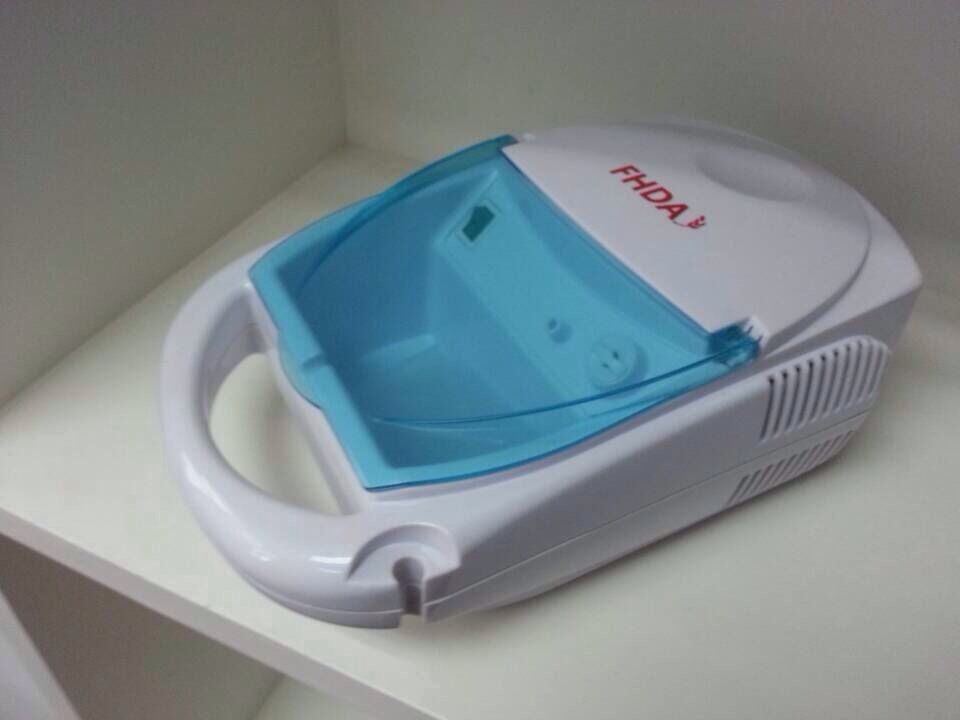

PA POM PP Moulding Medical Device Prototyping Beauty Apparatus Shell
Vacuum casting
Under vacuum conditions in castable for deaeration, stirring, preheating, note type, and at 60 ℃, 80 ℃ in the
constant temperature box of 2 to 3 hours of secondary curing process. Suitable for small batch trial production
of the product development process, the structure is relatively complex, uniform wall thickness, satisfy a certain
functional requirements of test samples.
Technical parameters :
Applicable mould: silicone mold life (10-20); resin mold (100);ABS mould (more than 100).
Casting materials: a two-component polyurethane PU.
Properties: like ABS, PP, PMMA/PC transparent, soft rubber parts shore (40-90), high temperature (150 ℃),
fire prevention materials and so on.
General working time: 1-4 hours/units
Standard replication accuracy: + / - 0.15 mm / 100 mm
Casting sample thickness: minimum 0.5 mm, best of 1.5 mm to 5 mm
The biggest casting workpiece: 2000 x1200x1000mm.
Rapid Prototyping & Manufacturing Process
|
Files Format |
Pro/E, Catia, Solidworks, Unigraphics, Auto CAD, *.igs, *.stp, *.stl, *.x-t |
|
Materials |
ABS, Polycarbonate (PC), polypropylene (PP), Polymethyl Methacrylate (PMMA), Polyethylene (PE), Polyoxymethylene (POM), Polyamide (PA), Wood,Aluminum , copper,Stainless steel etc. |
|
Surface Processing |
grinding,Polishing,oil injection,screen printing,transfer printing laser engraving, sandblasting,Electroplate,oxidation,wire drawing, emboss etc, |
|
Application Area |
Analyzed by sector, we can process the following Board models : Board model of automobile components: automobile and motorcycle parts,car dashboard, shade and other parts; x-ray, blood dialysis device, monitor, dashboard, shade and other parts;foot care boxes; Household appliances, Palm model: such as color TV, air conditioning, electric fans, electric oven, monitors, kettles, coffee makers,electric oven,juicer, Blender, etc; Digital communication Board models: such as mobile phones, telephones, fax machines, doorbell, cameras and other; Small batch processing : In industrial production, involving of process, cost, number of uses,many parts are not mass production by machines, which require a certain special technology to small or small batch processing, also may involve manual processing link in the middle. 1. Small batch processing of plastic parts material: POM, ABS, transparent acrylic(commonly known as PMMA), PC; 2. Small batch processing hardware materials: aluminum, aluminum - magnesiumalloy, aluminum - zinc alloy, copper |
