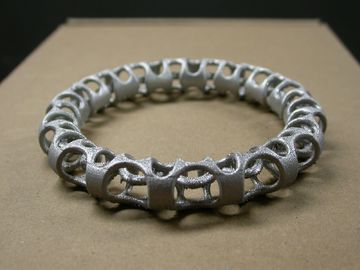

Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering

Good quality CNC Plastic Machining for sales
Hi Jennie,Thank you so much! I would just like to say that now we have finished with everything that your service was incredible.

—— Dennis Tomix

I really appreciate the amount of effort you have given. In the future if they’re ever any more prototype or CNC work, you will be my first option.

—— David

Hi Jennie , We've received the parts.They are great.Thank you so much for the quick work!

—— Mark

I'm Online Chat Now

Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering

China Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering supplier

Large Image :  Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering

Product Details:

Place of Origin: Shenzhen,China
Brand Name: StrongD
Certification: ISO9001:2008, SGS-CSTC
Model Number: Custom made

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Carton with foam wrapped, PE bags
Delivery Time: General 5-8 working days
Payment Terms: T/T, Western Union,paypal, MoneyGram
Supply Ability: 50pcs/Month, 1cm3/hour
Contact Now
Detailed Product Description
Material: Stainless Steel 316 L Materials Morphology: Powder
CNC Machining Or Not: Not Micro Machining Or Not: Not
Quotation Leadtime: Within 24 Hours Business Type: Manufacturer&factory
Tolerance: +/-0.05mm Price: Reasonable And Negotiate
Avaliable Files: Step/stp/igs/x_t/stl Material Capabilities: Cobalt-chromium Alloy,stainless Steel 316,titanium



Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering



Advantages



1. DMLS is also one of the few additive manufacturing technologies being used in

production. Since the components are built layer by layer, it is possible to design internal features and

passages that could not be cast or otherwise machined.



2. Compared with traditional manufacturing techniques, the speed of DMLS is the most

obvious because no special tooling is required and parts can be built in a matter of hours.



3. DMLS allows for more rigorous testing of prototypes. Since DMLS can use most alloys, prototypes can now

 be functional hardware made out of the same material as production components.



4. Complex geometries and assemblies with multiple components can be simplified to fewer parts with a

more cost effective assembly. DMLS does not require special tooling like castings, so it is convenient for

short production runs.





Applications



·  Metal parts, fire test parts, fixture direct manufacturing and model demonstration test.

·  Development of new products.

·  Creative design and display of culture, creativity, clothing, household goods and other.

·  Research and development of implants, teeth, skull repair, prosthetics and medical

   equipment.

·  Product design, rapid production of high-precision injection molds.







Technical Specifications for Direct Metal Laser Sintering



Technique Specifications of EOSINT M 280

Equipment

Building volume

250 mm x 250 mm x 325 mm

(9.85 x 9.85 x 12.8 in)

Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering

building platform 9.85 x 9.85 x 12.8 in

Laser type

Yb-fibre laser, 200 W oder 400 W (optional)

Precision optics

F-theta-lens, high-speed scanner

Scan speed

up to 7.0 m/s (23 ft./sec)

Variable focus diameter

100 - 500 μm (0.004 - 0.02 in)

Power supply

32 A

Power consumption

maximum 8.5 kW / typical 3.2 kW

Nitrogen generator

integrated

Compressed air supply

7,000 hPa; 20 m3/h (102 psi; 706 ft3/h)

Argon supply

4,000 hPa; 100 l/min

(58 psi; 3.5 ft3/min)(optional)









Service Step for a Project



Chain structure DMLS 3D Printing Service Direct Metal Laser Sintering





Rapid Prototyping & Manufacturing Process















Inspection Equipment-Three coordinate measuring



For its high precision flexible three coordinate measuring technology and excellent digital capability, become

a modern manufacturing especially mold industrial design, development, manufacture and quality assurance.

YanHua company now in U.S. FChain structure DMLS 3D Printing Service Direct Metal Laser SinteringARO company produces the Platinum FaroArm 2.4 m joint arm type measuring instrument, measurement

accuracy of + / - 0.03 mm.

Three coordinate measuring machine can be applied to 3 d digital analog input, will the molding samples or

related to the da location, size, shape tolerance, curve and curved surface are compared, and measuring the

 output graphical reports, intuitive clearly reflect the quality of the products, thus forming a complete sample test

 report.





Claim Terms:



We produce the products or samples according to your requirements. If our products can not reach your

requirements ,two solutions as follow:



1, we will produce your products again until reaching your reuirments for free.



2, we give the refund and you send us our products by international express.
